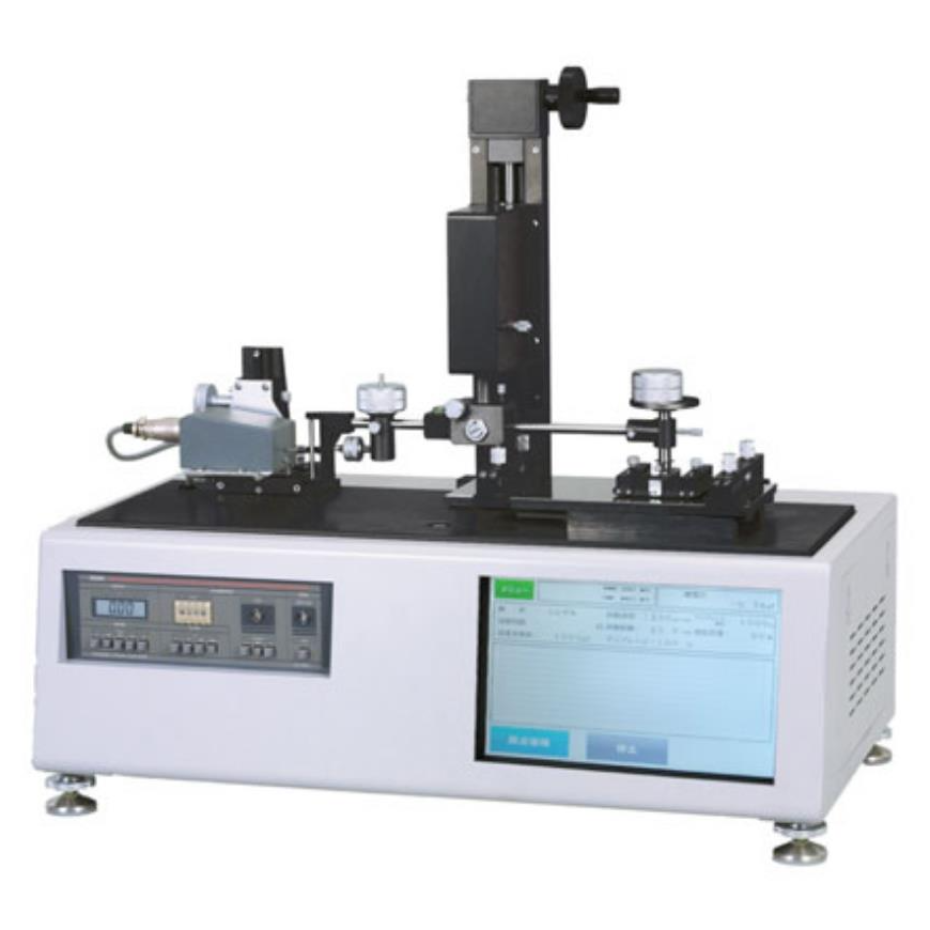

Surface Performance Testing Machine

The Surface Performance Testing Machine is a multifunctional tribological testing instrument designed to evaluate friction, wear, scratch resistance, and related surface properties of various materials. By applying controlled linear motion under defined loads, the system enables precise measurement of friction force, wear behavior, and surface performance under dry, lubricated, heated, or cooled conditions. It is suitable for comprehensive surface performance evaluation in both laboratory research and industrial quality control.

Application

Electronic product surfaces: Evaluation of wear resistance and color fading of coatings on mobile phone housings and keypads

Paper and printing materials: Measurement of friction between paper surfaces to prevent paper jams in printers and copiers

Abrasive materials: Quantification of grinding performance and wear characteristics of sandpaper

Rubber materials: Wear resistance testing of rubber components, including observation of automotive tire wear behavior

Rubber–glass interfaces: Friction performance evaluation between rubber and glass, such as wiper blade interaction with windshields

Flat materials: Friction performance testing of various flat sheet and panel materials

Environmental testing: Friction and wear testing under oil immersion, elevated temperature, or cooling conditions

Coated surfaces: Friction, wear, and scratch testing of coatings across different material systems

Typical test samples include:

Plastic housings and coated components

Paper and paperboard materials

Rubber products and elastomers

Glass and coated glass surfaces

Films, sheets, and surface-treated panels

Standards

GB/T 6040-2008 Test Method for Wear Resistance of Metal Surfaces

GB/T 9279-2007 Paints and Varnishes — Cross-Cut Test

JIS K 7125 Plastics — Tribological Test Methods

JIS K 5600 Testing Methods for Paints and Varnishes (including scratch, abrasion, and adhesion tests)

JIS L 0823 Test Methods for Abrasion Resistance of Plastic Films and Sheets

JIS P 8139 Determination of Friction and Wear Properties of Coatings

JIS P 8147 Determination of Surface Friction Coefficient and Scratch Properties of Coatings

ASTM D1894 Test Method for Static and Kinetic Coefficients of Friction of Plastic Film and Sheeting

Parameters

Features

Linear motion driven by a servo motor ensures stable and precise friction testing

Balanced mechanical arm structure minimizes the influence of adapter weight on vertical load

Direct transmission of friction force to the load sensor improves measurement accuracy

Supports a wide range of test heads and accessories for versatile surface performance evaluation

Touchscreen interface enables intuitive operation and real-time data display

Capable of testing under special environments, including lubricated, heated, or cooled conditions

Accessories

(1) Scratch needle

(1) Ball indenter

(1) Rod gauge

(1) Set of calibration weights

(1) Power cable (with 2P/E, 2 m)

(1) Accessory cover

(1) Tool set

(1) Parts box

(1) Operating manual

Optional: friction and wear analysis software, various test heads, heating plate, Y-axis moving stage

Test Procedures

Fix the test specimen securely on the worktable.

Select and install the appropriate test head according to the test method.

Set test parameters such as speed, sliding distance, load, and motion mode.

Adjust environmental conditions if required (oil, heating, or cooling).

Start the test and monitor friction force and surface behavior in real time.

Complete the test automatically or manually after the preset conditions are met.

Analyze test results based on the applicable standard and test objective.

Maintenance Information

Clean the worktable and test heads after each test

Inspect mechanical arms and transmission components regularly

Verify load sensor performance and zero calibration periodically

Keep electronic components free from dust and moisture

Store accessories and weights properly to prevent damage

FAQ

1. What is the core advantage of this product?

Its multifunctional design allows friction, wear, scratch, and surface adhesion testing within a single platform, covering a wide range of materials and applications.

2. Are the test results reliable?

Yes. The balanced mechanical structure, servo-driven motion, and high-quality signal amplification ensure stable, repeatable, and accurate measurements.

3. Which international or industry standards does it comply with?

The machine supports multiple GB, JIS, and ASTM standards related to friction, wear, scratch resistance, and surface performance testing.

4. Why is this product important?

Surface performance directly affects product durability, functionality, and user experience. Accurate testing helps optimize material selection and product design.
