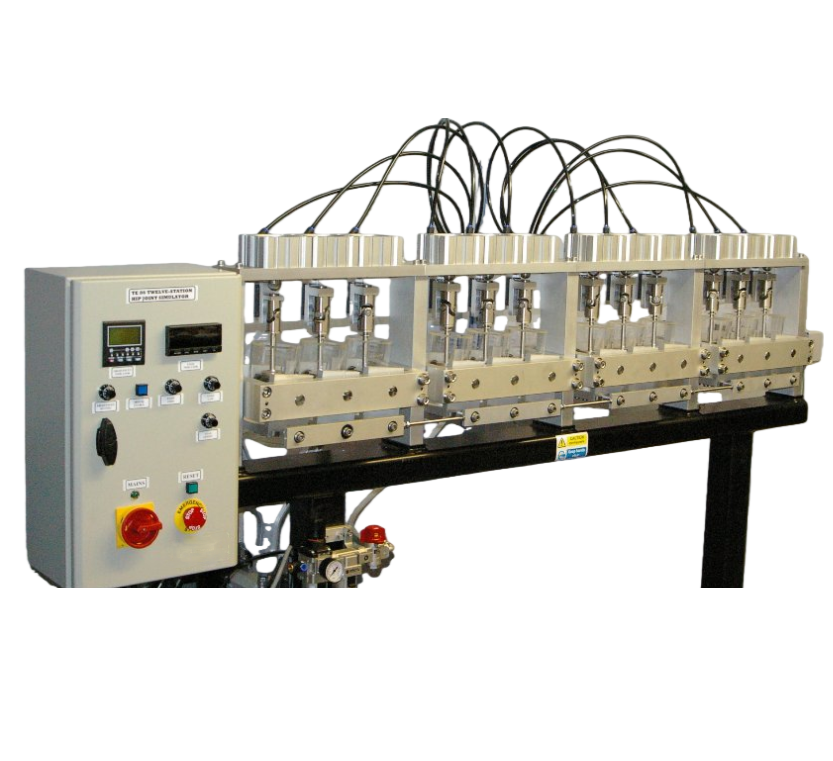

The Multi-Station Hip Joint Simulator is a specialized biomechanical testing device used for evaluating the wear performance of artificial hip joint prostheses. By simulating the complex loading conditions and motion patterns of the human hip joint during daily activities such as walking and running, it systematically and precisely assesses key properties of prosthetic materials, including wear resistance, fatigue life, and biocompatibility.This equipment is widely applied in the research and development optimization of medical devices, the mechanical performance evaluation of new materials, and the scientific verification of preclinical safety and effectiveness. It serves as an indispensable testing tool in the field of artificial joints.This article will provide a systematic introduction covering key aspects such as the detailed operating procedures and typical application scenarios of the device, aiming to offer comprehensive technical reference and practical guidance for industry professionals, quality inspection personnel, and product development engineers, and to help users gain a deeper understanding of and effectively utilize this important testing instrument.
The Multi-Station Hip Joint Simulator is designed to reproduce the in vitro motion and loading environment of the human hip joint, enabling the evaluation of wear behavior and wear particle generation characteristics of different material combinations during long-term use.
Multi-Station Parallel Testing:
The system supports simultaneous operation of 6 or 12 test stations, significantly improving experimental efficiency and throughput.
Simulation of Physiological Motion:
It reproduces realistic biomechanical movements of the hip joint, including:
Two-axis motion: flexion–extension (FE, ±46°) and abduction–adduction (AA, ±12°), with a phase difference of π/2
Internal–external rotation is excluded, as its influence on clinical wear is relatively minor
Dynamic Load Control:
Maximum load: up to 3 kN (6-station configuration) or 2 kN (12-station configuration)
Minimum load: 0.4 kN
Average load: 1.2 kN
Load waveform: double-peak waveform
Force trajectory aspect ratio: 3.8
Trajectory length: 1.73r (r = femoral head radius), accurately reproducing human gait characteristics
Lubrication Environment Simulation:
Uses diluted bovine serum as a lubricant (volume: 500 mL), effectively preventing overheating during operation.
Wear Quantification Analysis:
Enables precise measurement of wear rate, wear particle size, and morphology (most particles are smaller than 1 μm).
High Structural Compatibility:
Supports testing of multiple prosthesis combinations. Samples are easy to install and allow for repeatable and precise positioning.
Prosthesis Material Comparative Research:
Evaluates the wear resistance of different head–cup material combinations.
Medical Device R&D and Certification:
Provides key data support for the design optimization, material selection, and compliance testing of artificial hip joint prostheses according to standards such as ISO and YY/T.
Wear Mechanism Analysis:
By analyzing the morphology and size distribution of wear particles, the system helps investigate their role in long-term complications such as osteolysis and implant loosening.
Cost-Effective Testing Solution:
With a relatively simple structure and user-friendly operation, it is particularly suitable for small and medium-sized laboratories and industrial R&D applications.
The Multi-Station Hip Joint Simulator is a device used to simulate in vitro human hip joint motion and loading conditions. It is primarily used to evaluate the wear performance, biotribological behavior, and material durability of artificial hip joint implants. Its main application industries include the following:
Medical Device Industry
Used for material development, quality control, and pre-market wear testing of artificial hip joint prostheses (such as femoral heads and acetabular cups), in compliance with international standards such as ISO.
Biomedical Engineering Research
Supports universities and research institutes in conducting systematic studies on friction and wear mechanisms, lubrication effects, and wear particle generation characteristics of material pairs such as UHMWPE, cross-linked UHMWPE (cUHMWPE), ceramics, and metal-on-metal combinations.
Materials Science and Engineering
Applicable for evaluating the tribological performance of new polymer, ceramic, or composite materials under simulated physiological conditions, providing data support for implant material optimization.
Rehabilitation and Sports Medicine-Related R&D
Although not directly used in clinical rehabilitation, the wear data generated can indirectly guide improvements in prosthesis design, thereby enhancing long-term implant performance and supporting orthopedic rehabilitation-related applications.
The Multi-Station Hip Joint Simulator is an experimental device used to simulate the in vivo motion state of the human hip joint, primarily for evaluating the wear performance of different prosthetic material combinations. Its core technical features are as follows:
Number of Test Stations:
Supports 6-station or 12-station configurations, enabling simultaneous multi-group comparative testing and significantly improving testing efficiency.
Maximum Load Capacity:
6-station model: 3 kN per station
12-station model: 2 kN per station
Minimum Load: 0.4 kN
Average Load: 1.2 kN
Test Frequency:
At 50 Hz power supply: 1.06 Hz
At 60 Hz power supply: 1.27 Hz
Optional inverter allows operation at lower frequencies
Motion Mode:
Dual-axis motion system:
Flexion–extension (FE): ±46°
Abduction–adduction (AA): ±12°
The two motions are orthogonal with a phase difference of π/2. approximating a sinusoidal waveform
Internal–external rotation is not included, as its influence on clinical wear is relatively minor
Loading Method:
Vertical load applied relative to a fixed acetabular cup
Dynamic double-peak waveform load generated via a pneumatic system
Load profile is mechanically generated by a cam mechanism, without real-time closed-loop control, ensuring high system stability
Force Trajectory Characteristics:
Aspect ratio: 3.8
Trajectory length: 1.73r (r = femoral head radius), accurately simulating human gait patterns
Lubricant:
Uses 500 mL of diluted bovine serum, ensuring sufficient fluid volume and preventing overheating during operation.
Test Configuration:
The acetabular cup remains stationary while the femoral head is in motion, consistent with most physiological conditions.
1. Equipment Preparation
Confirm that the power supply and compressed air meet the required specifications: typically 240V/50Hz or 110V/60Hz single-phase power, and 8 bar compressed air at 4 cfm.
Inspect the lubricant circulation system to ensure the 500 mL acrylic lubrication chamber is clean and filled with an appropriate lubricant, such as diluted bovine serum.
2. Sample Installation
Fix the acetabular cup in place, while the femoral head is mounted as the moving component on the loading mechanism.
Use high-precision fixtures to ensure consistent positioning for each installation, guaranteeing repeatability of test results.
3. Parameter Setting
Test Frequency:
Based on local power supply frequency:
50 Hz → 1.06 Hz
60 Hz → 1.27 Hz
Load Settings:
Maximum load:
3 kN for 6-station configuration
2 kN for 12-station configuration
Minimum load: 0.4 kN
Average load: 1.2 kN
Motion Mode:
Flexion–extension (FE): ±46°
Abduction–adduction (AA): ±12°
Phase difference between the two directions: π/2
Motion curves approximate a sinusoidal waveform
Force Trajectory:
Aspect ratio: 3.8
Trajectory length: 1.73r (r = femoral head radius)
4. Start-Up and Monitoring
After starting the system, the load waveform is automatically controlled by a cam–pneumatic mechanism, without requiring real-time feedback control.
Load signals are monitored via force sensors on the main test station for verification purposes only and are not part of closed-loop control.
Record cycle counts and total operating time during the test.
5. Post-Test Processing
After stopping the system, dismantle the samples for evaluation, including:
Mass loss measurement
Wear particle analysis
Surface morphology observation
Clean the test chamber to prepare for the next testing cycle.
The system uses a combined electromechanical and pneumatic drive structure, which is simple and requires low maintenance.
Test stations are available in 6-station or 12-station configurations, corresponding to different load capacities.
The importance of the Multi-Station Hip Joint Simulator lies in its role as a critical technical platform for the development, performance evaluation, and quality control of hip joint prostheses. Its key significance is outlined as follows:
Providing an Efficient and Controllable In Vitro Testing Environment
The multi-station hip joint simulator can accurately reproduce the complex physiological motions and loading conditions of the human hip joint during daily activities such as walking in a laboratory environment. It typically allows simultaneous testing of 6 to 12 samples, significantly improving testing efficiency and data consistency.
The system is capable of reproducing dual-axis motion (such as flexion–extension and abduction–adduction), applying dynamic loading (e.g., double-peak waveforms), and using physiological-like lubricants (such as diluted bovine serum). This enables the construction of a highly realistic in vitro simulation of the in vivo environment.
Supporting Standardized Evaluation of Key Performance Parameters
The simulator is a core device for conducting standardized tests in accordance with international standards (such as ISO series). It provides objective and repeatable evaluation data for the wear performance of hip prostheses.
Through long-term cyclic testing, it can accurately measure mass loss of prostheses (especially femoral head and acetabular cup combinations), calculate wear rates, and analyze the size, morphology, and distribution of wear debris.
Accelerating the Development of New Materials and Designs
The multi-station capability allows researchers to conduct parallel comparisons of different material combinations or prosthesis designs under identical conditions. This highly efficient comparative testing significantly shortens the R&D cycle and helps identify more wear-resistant, safer, and more reliable implant solutions.
It also promotes the application of advanced ceramics and improved polymer materials in orthopedic implant development.
Ensuring Product Quality and Patient Safety
Before market release, rigorous wear testing using the simulator is a critical part of quality control. By simulating millions of gait cycles, potential design defects or insufficient wear resistance can be identified in advance.
Evaluation of wear debris is particularly important, as its size, quantity, and biological response directly influence periprosthetic osteolysis and long-term implant stability. The simulator helps select prostheses that generate fewer and more biologically favorable debris, thereby reducing clinical failure risk and improving long-term patient outcomes.
Promoting Standardization and Advancement of Testing Technologies
The design, application, and optimization of multi-station hip joint simulators also drive the advancement of joint prosthesis testing methodologies. Their technical principles—such as the combination of electromechanical drive and servo-pneumatic loading systems, as well as integration with servo-hydraulic systems—help establish standardized industry testing protocols.
In summary, the Multi-Station Hip Joint Simulator serves as a vital bridge between prosthesis engineering design, laboratory validation, and clinical application. By providing a highly efficient, standardized, and physiologically realistic testing environment, it plays an indispensable role in improving implant performance, ensuring product safety, accelerating technological innovation, and safeguarding patient health.We sincerely welcome your inquiries regarding technical parameters, testing standards, operating procedures, or any related questions. Please feel free to leave a message or contact us directly so that we can provide detailed product information, demonstration videos, or customized solutions to help you fully understand the capabilities and advantages of the equipment.
