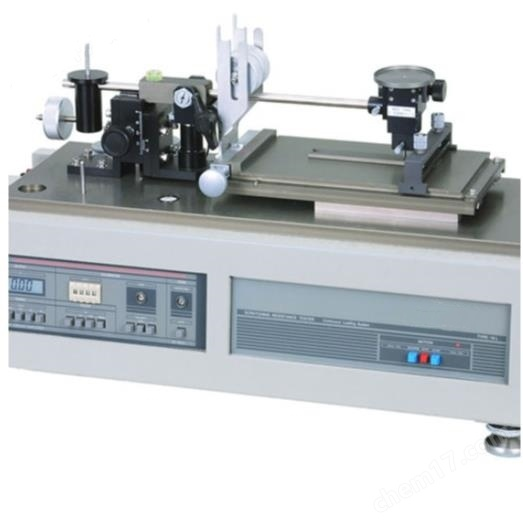

The Continuous Load Scratch Resistance Tester is a professional testing instrument used to evaluate the scratch resistance of material surfaces under constant load conditions. By applying a continuous and stable normal force to the surface of a material and moving a hard stylus (such as diamond or tungsten carbide) across the surface at a predetermined speed, the tester simulates scratching behavior that occurs in real-world applications.This process allows quantitative evaluation of a material’s scratch resistance, providing scientific measurements of key mechanical properties such as wear resistance, coating adhesion, and surface hardness.
The constant-load scratch resistance tester is a precision device specifically designed to evaluate the scratch resistance performance of material surfaces. Its fundamental principle involves applying a continuous and stable vertical load to the surface of a specimen, thereby simulating scratching actions that may occur in real applications and enabling quantitative characterization of a material’s resistance to scratching.The entire testing process is highly standardized and can be divided into the following key stages and functional modules.
The first step of the test is to ensure that the load applied to the specimen remains highly constant.
The stylus tip used in the tester is typically made of diamond or hardened high-strength steel, and it is driven by a precision loading system (such as a servo motor drive system or a precision weight-lever mechanism). The stylus applies a preset and precisely controlled normal force (for example, 10 N ± 0.5 N) vertically onto the surface of the material being tested.
This loading process is strictly controlled to eliminate test errors caused by load fluctuations. As a result, it ensures excellent repeatability and comparability of test results across multiple tests and different sample batches.
Once the preset normal load is successfully applied and stabilized, the scratching stage begins.
The stylus does not remain stationary. Instead, driven by the motion mechanism, it moves across the surface of the material in a single straight line at a constant preset speed (for example, 20 mm/s ± 5 mm/s).
The control system of the instrument allows users to precisely preset and program various parameters according to testing standards or specific requirements, including:
Total scratch length
Spacing between scratches
Penetration angle between the stylus and specimen surface (typically 80°–85°)
Some advanced models also support more complex scratch patterns. For example, during the test the specimen or stylus assembly can automatically rotate 90°, enabling cross-scratch testing in perpendicular directions. This provides a more comprehensive evaluation of the material’s scratch resistance in different orientations.
During the relative movement between the stylus and the material surface, the hard stylus tip interacts with the material, causing plastic deformation or micro-cutting on the surface. This process creates visible grooves on the material surface, known as scratches, which constitute the core physical mechanism of the test.
At the same time, the instrument integrates multiple high-precision sensors that continuously monitor and record the process in real time. These sensors capture dynamic changes during scratch formation, including:
Real-time scratch depth
Instantaneous scratch width
Friction force curve during scratching
Some high-end models also integrate advanced continuous surface profile scanning modules, enabling high-resolution three-dimensional scanning and reconstruction of the surface morphology before and after scratch formation at the same position.
This capability provides richer morphological information for analyzing scratch characteristics such as material pile-up and plowing patterns.
After the test is completed, the instrument system or its associated analysis software processes and analyzes the collected raw data.
The software performs integrated data analysis to evaluate parameters such as:
Scratch depth and width
Friction behavior during scratching
Surface deformation characteristics
Scratch hardness and coating adhesion (depending on configuration)
These quantitative indicators allow accurate evaluation of the material’s surface durability and mechanical performance.
After each use, wipe the test head, loading system, and sample stage with a soft cloth to prevent dust or residue from affecting subsequent test accuracy.
If the instrument is not used for an extended period, it should be covered with a dust-proof cover or stored in a dry environment.
Regularly inspect moving parts such as guide rails and lead screws, and apply a small amount of specialized lubricating oil according to the manufacturer’s instructions (excessive lubrication should be avoided to prevent dust accumulation).
Ensure that moving components such as the test head lifting mechanism and rotating platform operate smoothly without sticking.
The loading system (including weights or sensors) should be calibrated regularly to ensure that the applied pressure meets the required standards (for example, ±2% accuracy).
Displacement sensors or scratch depth measurement modules should also be calibrated periodically to prevent measurement errors caused by sensor drift.
After testing, the stylus (such as a tungsten carbide cone) should be removed promptly, cleaned, and stored properly to prevent oxidation or mechanical damage.
When a worn stylus is replaced, the contact force and displacement reference must be recalibrated.
The equipment should be placed in a constant temperature and humidity environment (for example, 23 ± 2°C and 50 ± 5% relative humidity) to prevent fluctuations that could affect electronic components and mechanical stability.
The instrument should also be kept away from strong magnetic fields, vibration sources, and corrosive gases.
The PLC control program or touchscreen system firmware should be updated periodically if updates are available.
Power cables and grounding lines should be inspected regularly to ensure they are intact and to prevent electrical leakage or signal interference.
The Continuous Load Scratch Resistance Tester plays an important role in materials science, product quality control, and industrial research and development. Its core value lies in the ability to accurately evaluate scratch resistance under stable and controllable load conditions.
The constant load method eliminates data deviations caused by force fluctuations that commonly occur in traditional variable-load or impact-based testing methods. As a result, key parameters such as scratch depth and width remain more stable, enabling reliable comparison between different materials or coatings.
Many international standards require scratch tests to be conducted under constant or controlled load conditions. Examples include:
ISO 4586-2
GB/T 17657-1999
ASTM C217
Therefore, this type of instrument is an essential tool for standard-compliant testing.
In many practical applications—such as automotive coatings, flooring materials, electronic screens, and pipeline coatings—materials are subjected to continuous contact friction.
Constant load testing more realistically simulates this steady-state scratching process, improving the accuracy of performance prediction.
The tester can be used for a wide variety of materials, including:
Metals
Plastics
Glass
Coatings
Composite materials
It is widely applied in industries such as automotive manufacturing, home appliances, building materials, and aerospace.
High-end models can simultaneously record the scratch trajectory, measure groove geometry in real time, calculate scratch hardness, and combine microscopic imaging technologies to achieve integrated analysis at both micro and macro levels.
When selecting a Continuous Load Scratch Resistance Tester, it is important to evaluate the equipment based on the application scenario, material type, testing standards, and instrument performance parameters.
Material Type:
Different materials—such as metals, plastics, coatings, leather, flooring materials, and optical lenses—have different requirements for load range, stylus material, and test speed.
Testing Purpose:
Determine whether the equipment will be used for quality control, research and development validation, or compliance with specific industry standards (such as those in the automotive, electronics, or construction industries).
Simulation of Real Usage Scenarios:
If the test must simulate real-life conditions (such as pet claw scratching or daily friction), relevant testing standards for materials like leather or flooring should be considered.
Load Range and Stability:
The constant load range should cover the required test force (for example 0.1 N–20 N), with accuracy typically within ±1%. Some devices support adjustable loads such as 5 N, 10 N, and 20 N.
Stylus Type and Material:
Common stylus materials include diamond, tungsten carbide, and hardened steel, with tip radii such as 0.5 mm, 1 mm, and 3 mm. The choice depends on material hardness; hard materials like metals generally require tungsten carbide, while softer materials like coatings may use steel styluses.
Test Speed and Stroke:
Recommended speed ranges from 0.4 mm/min to 600 mm/min (for example in the Anton Paar RST series). The stroke length determines the test area and typically should be at least 30 mm.
Automation and Data Acquisition:
Check whether the system supports automatic recording of friction force, depth, and synchronized imaging, as well as features such as automatic critical load identification for coating adhesion evaluation.
Standards Compliance:
Ensure the equipment complies with relevant standards such as:
ISO DIS 12137
ISO 20502
ASTM C1624
PV 3952
Overall, the Continuous Load Scratch Resistance Tester plays a crucial role in the future development of the entire industry. It not only provides accurate and reliable testing data, but also helps promote the establishment and improvement of industry standards, thereby supporting continuous enhancement of product quality.Therefore, the widespread adoption and continuous advancement of this equipment will undoubtedly play a key role in driving long-term industry progress and strengthening market competitiveness.
