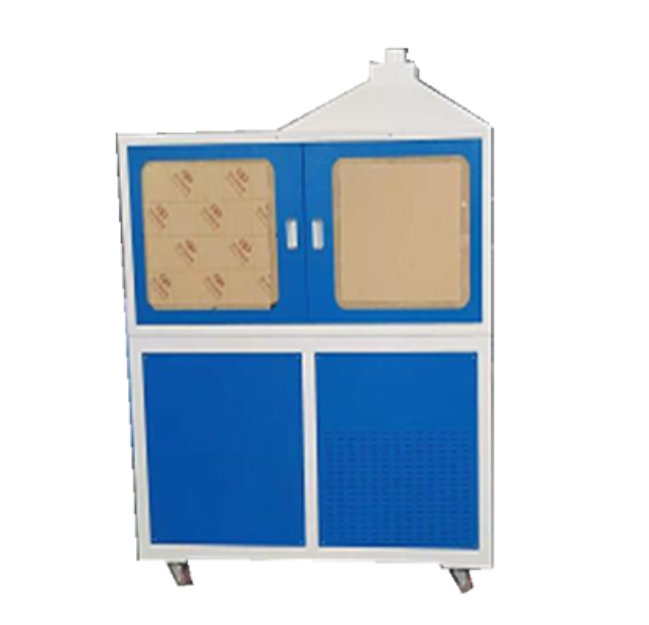

The Conveyor Belt Drum Friction Testing Machine is a specialized instrument designed to evaluate the flame resistance and friction-induced ignition performance of conveyor belts. It simulates real operating conditions by applying tension and friction between the belt sample and a rotating drum. The system monitors drum surface temperature and observes combustion behavior, ensuring that conveyor belts meet safety requirements for use in high-risk environments such as mining and industrial transport systems.
The conveyor belt drum friction testing machine has extensive application value in multiple fields. Its main purposes include:
Evaluating Conveyor Belt Performance
This equipment is mainly used to evaluate the performance of conveyor belts under drum friction conditions, especially their anti - friction, anti - wear, and flame - retardant properties. By simulating the friction conditions in actual working environments, it can test the durability and reliability of conveyor belts, providing data support for product optimization design.
Material Selection and R & D
During material research and development, the conveyor belt drum friction testing machine can be used to screen materials with excellent wear - resistance and anti - friction properties. By comparing the test results of different materials, it can provide a scientific basis for material selection and reduce product R & D costs.
Optimization Design
Based on the test results, the structure and materials of conveyor belts can be optimized to improve their service life and performance. At the same time, it can also provide improvement suggestions for drum design to reduce friction loss and energy consumption.
Scientific Research and Teaching
In the field of scientific research, the conveyor belt drum friction testing machine can be used for research on friction and wear mechanisms, material surface modification, etc. In teaching, this equipment can be used to cultivate students' practical abilities and scientific research qualities, improving the quality of teaching.
(1) MT 914-2008 (Solid woven flame-retardant conveyor belts for coal mining)
(2) GB/T 7986-1997 (Drum friction test method for conveyor belts)
(3) MT 450-1995 (Steel cord conveyor belt flame retardant and antistatic test method)
(4) MT 668-2008 (Steel cord flame-retardant conveyor belts for mining)
(5) MT 830-2008 (Fabric layered flame-retardant conveyor belts for mining)
| Item | Specification |
|---|---|
| Drum Diameter | Φ210 ± 0.5 mm |
| Motor Power | 11 kW |
| Drum Speed | 200 ± 5 r/min |
| Blower Power | 220V, 25W |
| Tension Weight | 343 N per unit |
| Distance (Pipe to Drum) | 600 mm |
| Airflow Measurement | Handheld anemometer |
| Temperature Display | display |
| Perforated Pipe | Φ40 mm (inner), hole Φ6 mm, 21 holes, spacing 13 mm |
| Temperature Sensors | 3 units (2 spare) |
(1) Simulates real friction conditions between conveyor belt and drum
(2) Accurate temperature monitoring with multiple sensors
(3) Evaluates both flaming and non-flaming combustion behavior
(4) Stable high-power drive system ensuring consistent rotation speed
(5) Suitable for multiple types of flame-retardant conveyor belts
(6) Reliable structure for industrial testing environments
(7) Complies with major national and industry standards
